We load-tested an SMC molded FRP cable support in our workshop to observe its behavior under progressively increasing force. The bracket was tested at approximately 450 kg and then 500 kg, followed by a close inspection of the cantilever arm and reinforced connection area. This real test illustrates why FRP bracket capacity should be evaluated by structure, material, installation method, and load direction rather than by a single generic load rating.

FRP Cable Support Load Test: What Happened at 500 kg?

Load-bearing capacity is one of the most important questions engineers and buyers ask when evaluating FRP cable supports.

But there is an important distinction between asking:

“How much weight can an FRP bracket carry?”

and asking:

“How does this particular bracket behave under a specific loading and installation condition?”

The second question is much more useful.

In this workshop test, we installed an SMC molded FRP cantilever cable support in a simulated mounting condition and progressively increased the applied load. The bracket was first evaluated at approximately 450 kg and was then subjected to a final test load of approximately 500 kg.

After loading, we inspected the bracket closely to see where deformation or cracking occurred.

This type of physical test provides useful information about bracket structure, reinforcement, load direction, and potential failure areas.

For a broader introduction to how these systems are used in underground infrastructure, see our article on FRP cable supports for cable trenches.

Why Load Testing Matters for FRP Cable Supports

FRP cable supports are commonly used in cable trenches, underground utility corridors, tunnels, industrial facilities, substations, and other cable-management systems.

In these installations, the support arm may carry several cables at the same time.

The important engineering question is therefore not simply whether FRP is a strong material.

What matters is whether the complete bracket structure can safely transfer the required load from the cantilever arm into the mounting point.

Load-bearing performance may be influenced by factors including:

• bracket geometry;

• cantilever arm length;

• wall thickness;

• rib design;

• fiberglass reinforcement;

• resin formulation;

• mounting-hole position;

• fixing method;

• load position;

• load direction.

This is why a single load number should not automatically be applied to every FRP bracket design.

For projects requiring customized structures and higher mechanical demands, PINZHENG also develops custom heavy-duty FRP brackets according to the actual geometry, mounting arrangement, and loading requirements.

The SMC FRP Cable Support Used in This Test

The component shown in the video is a molded FRP cable support manufactured using SMC compression molding.

SMC, or Sheet Molding Compound, combines resin, fiberglass reinforcement, fillers, and other formulation components into a moldable composite material.

During compression molding, the SMC charge is placed into a heated mold and formed under pressure.

For repeat-production components such as cable supports, this process makes it possible to produce molded features such as:

• structural ribs;

• mounting surfaces;

• bolt locations;

• reinforced corners;

• cantilever support sections.

Rather than relying only on material thickness, these structural features can contribute significantly to how the load is transferred through the bracket.

If you want to understand where this process fits compared with other fiberglass manufacturing methods, our guide to SMC compression molding versus hand lay-up FRP manufacturing explains the main differences.

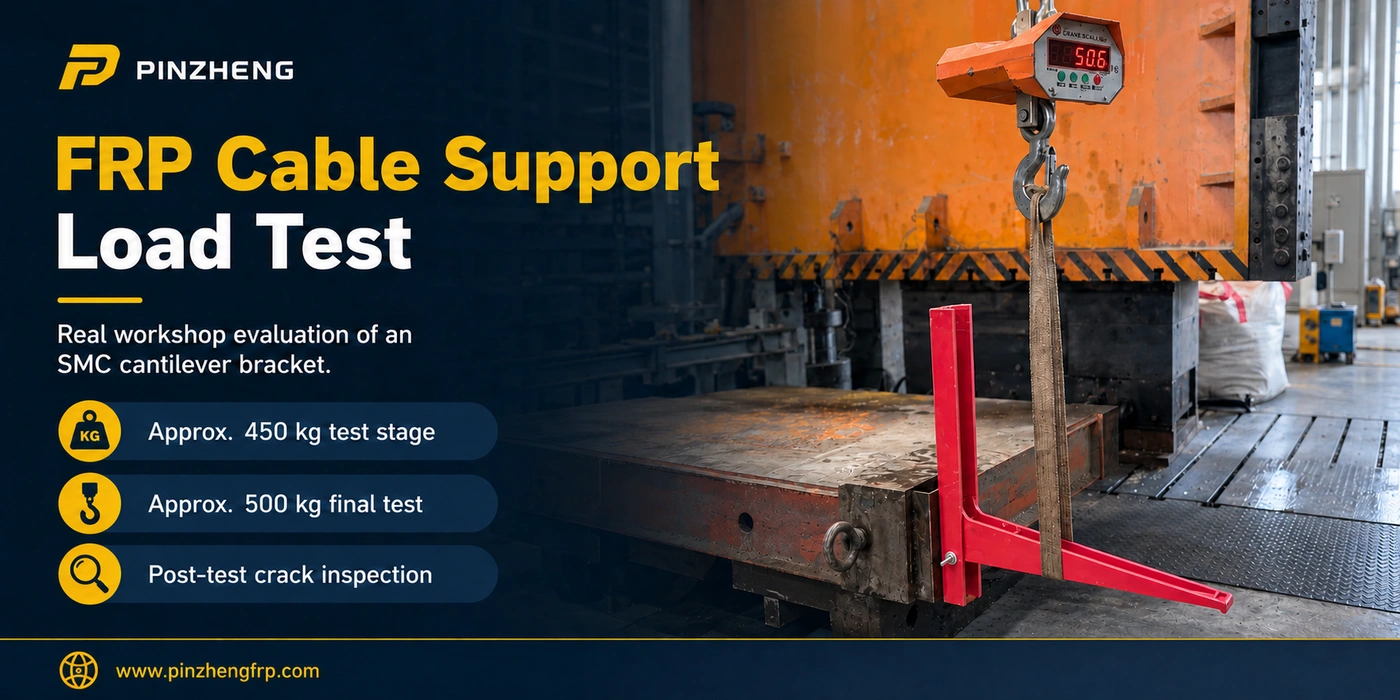

How We Set Up the Load Test

For the test shown in the video, the FRP bracket was fixed to a rigid steel test structure.

The bracket was installed in an orientation intended to represent its normal cantilever working condition.

A pulling force was then applied near the outer portion of the support arm.

This creates a demanding loading condition because the force generates a bending moment through the cantilever arm and into the mounting section.

The test was not intended to establish a universal load rating for all FRP cable supports.

Instead, the objective was to observe the structural behavior of this particular bracket under progressively increasing load.

First Test Stage: Approximately 450 kg

During the first major loading stage, the measured tensile force reached approximately 450 kg.

At this point, the bracket remained attached to the test fixture.

We then stopped the loading process and inspected the areas that were most likely to experience high stress.

Particular attention was given to:

• the junction between the horizontal arm and vertical mounting section;

• molded ribs around the cantilever structure;

• the bolt and mounting region;

• visible surface changes.

This intermediate inspection is important because composite structures may begin showing localized damage before complete structural failure occurs.

Final Test Stage: Approximately 500 kg

The test was then repeated with a final target load of approximately 500 kg.

The bracket again remained connected to the test fixture during the loading process.

After the load was removed, however, a closer visual inspection showed localized cracking in the cantilever arm area.

This is an important observation.

It would be misleading to interpret the test simply as:

“The bracket supports 500 kg.”

Instead, the useful engineering conclusion is that the bracket was subjected to a test load of approximately 500 kg and that visible damage appeared after this loading stage.

That distinction matters when evaluating composite support structures.

Test Load Is Not the Same as Safe Working Load

One of the most important lessons from this test is that maximum test load and allowable working load are different concepts.

A component may survive a short-duration test without complete separation while still experiencing:

• matrix cracking;

• internal fiber damage;

• local deformation;

• stress concentration;

• reduced remaining strength.

For this reason, an observed workshop test value should not automatically be treated as a safe design load.

For an actual cable-support project, engineers may also need to consider:

• required safety factors;

• continuous versus temporary loading;

• load distribution;

• installation spacing;

• fixing strength;

• environmental exposure;

• temperature;

• long-term mechanical behavior;

• applicable project standards.

The appropriate design load should therefore be determined according to the actual product structure and project requirements.

Where Did the Damage Appear?

The post-test inspection shown in the video is particularly useful because it demonstrates where stresses concentrate in a cantilever bracket.

The transition between the vertical mounting section and horizontal support arm is structurally important.

When a downward or equivalent bending load is applied to the outer end of the arm, the bending moment increases toward the fixed end of the bracket.

As a result, several design details become important:

• corner radius;

• rib geometry;

• local laminate thickness;

• reinforcement distribution;

• mounting geometry.

Looking at where a tested component begins to crack can therefore help engineers improve future designs.

Why Structural Geometry Matters as Much as Material Choice

When discussing FRP brackets, attention often focuses on material properties.

However, two brackets made from similar FRP materials can behave very differently if their structures are different.

For example, changing the:

• arm length;

• rib height;

• rib thickness;

• mounting configuration;

• transition radius;

can significantly change how load moves through the part.

This is one reason PINZHENG evaluates custom FRP support components according to the actual geometry, installation method, and required loading conditions rather than relying only on a generic material description.

For applications outside standard cable-support designs, our broader custom FRP products portfolio shows how composite structures can be developed for different industrial, municipal, architectural, and commercial requirements.

What Can Be Learned From a Failure Test?

Testing a product close to or beyond the point where visible damage begins can provide valuable engineering information.

It can help identify:

Stress Concentration Areas

Cracks often reveal where the structure experiences the highest localized stresses.

Reinforcement Opportunities

Ribs, thickness distribution, geometry, or material formulation may be adjusted according to the observed failure area.

Realistic Design Limits

Physical testing can help verify assumptions made during component development.

Manufacturing Consistency

Repeated tests can also be used to compare products from different production batches when required.

For custom FRP products, this feedback between design, molding, testing, and improvement is an important part of engineering development.

FRP Cable Supports in Real Cable-Trench Applications

The video also shows FRP cable supports installed in cable-trench environments.

These systems are typically used to organize and support power, control, or communication cables along tunnel or trench walls.

FRP is often considered for these applications because the composite can provide a combination of:

• corrosion resistance;

• electrical insulation;

• relatively low weight;

• molded structural geometry;

• repeatable SMC production.

However, the required structural design should always be selected according to the actual cable load, support spacing, mounting arrangement, and operating environment.

For more application-focused information, see our detailed article on FRP cable supports for cable trenches.

How PINZHENG Evaluates Custom FRP Bracket Projects

PINZHENG manufactures SMC molded FRP components and custom fiberglass products for industrial and infrastructure applications.

When evaluating a custom support or bracket project, useful information includes:

• drawings or 3D models;

• overall dimensions;

• arm length;

• mounting-hole positions;

• expected working load;

• load direction;

• installation method;

• operating environment;

• required production quantity.

Based on these factors, the product structure, mold design, SMC formulation, and reinforcement configuration can be evaluated before production.

Where structural performance is particularly important, prototype or production-sample testing can also provide additional verification.

For projects requiring a purpose-designed support structure, you can review our custom heavy-duty FRP brackets or browse the wider range of custom FRP products.

Conclusion

This FRP cable support test demonstrates an important point about composite structural components:

Load capacity should be evaluated through actual structure and test conditions, not by a single generic number.

In our workshop test, this SMC molded cable support was progressively loaded to approximately 450 kg and then approximately 500 kg.

After the final loading stage, localized cracking was observed in the cantilever structure.

Rather than treating 500 kg as a universal working-load rating, the test provides useful information about how the bracket transfers load, where stress concentrates, and where structural improvements may be considered.

For engineers and buyers evaluating FRP cable supports, the most useful questions are therefore:

• What is the required working load?

• Where will that load act?

• How will the bracket be installed?

• What safety margin is required?

• Has the actual structure been verified?

These questions provide a much more reliable basis for selecting or developing an FRP support system.

Need an FRP cable support or custom bracket evaluated for your project?

PINZHENG provides SMC compression molding, RTM, and hand lay-up FRP manufacturing for industrial components based on drawings, samples, 3D models, and project requirements.

You can browse our custom FRP product capabilities or contact PINZHENG to discuss drawings, samples, expected loads, installation conditions, and project requirements.

FAQ

How much weight can an FRP cable support carry?

There is no universal load capacity for all FRP cable supports. Capacity depends on bracket geometry, arm length, wall thickness, reinforcement, material formulation, mounting method, load position, and load direction. The required design should be evaluated for the actual application.

Does a 500 kg test mean the bracket has a 500 kg working load?

No. A short-duration test load should not automatically be interpreted as a safe working load. In the test shown here, localized cracking was observed after the bracket was subjected to approximately 500 kg. Actual working loads should include appropriate engineering evaluation and safety factors.

Why do FRP cantilever brackets usually need ribs?

Ribs can help distribute loads and increase local stiffness without simply increasing the thickness of the entire component. Their geometry and location should be designed according to the bracket structure and loading condition.

Can SMC FRP brackets be customized for different load requirements?

Yes. SMC molded brackets can be developed with different dimensions, wall thicknesses, rib structures, mounting features, and material formulations. Final suitability should be evaluated according to the required load and installation conditions.
