How a 2-Meter FRP Component Is Made with SMC Compression Molding

When buyers first see a large fiberglass component, one common question is:

Can a part this size really be produced by compression molding?

The answer depends on much more than the outside dimensions of the product.

Part geometry, projected molding area, material flow, mold design, press capacity, demolding requirements, and expected production quantity all need to be considered together.

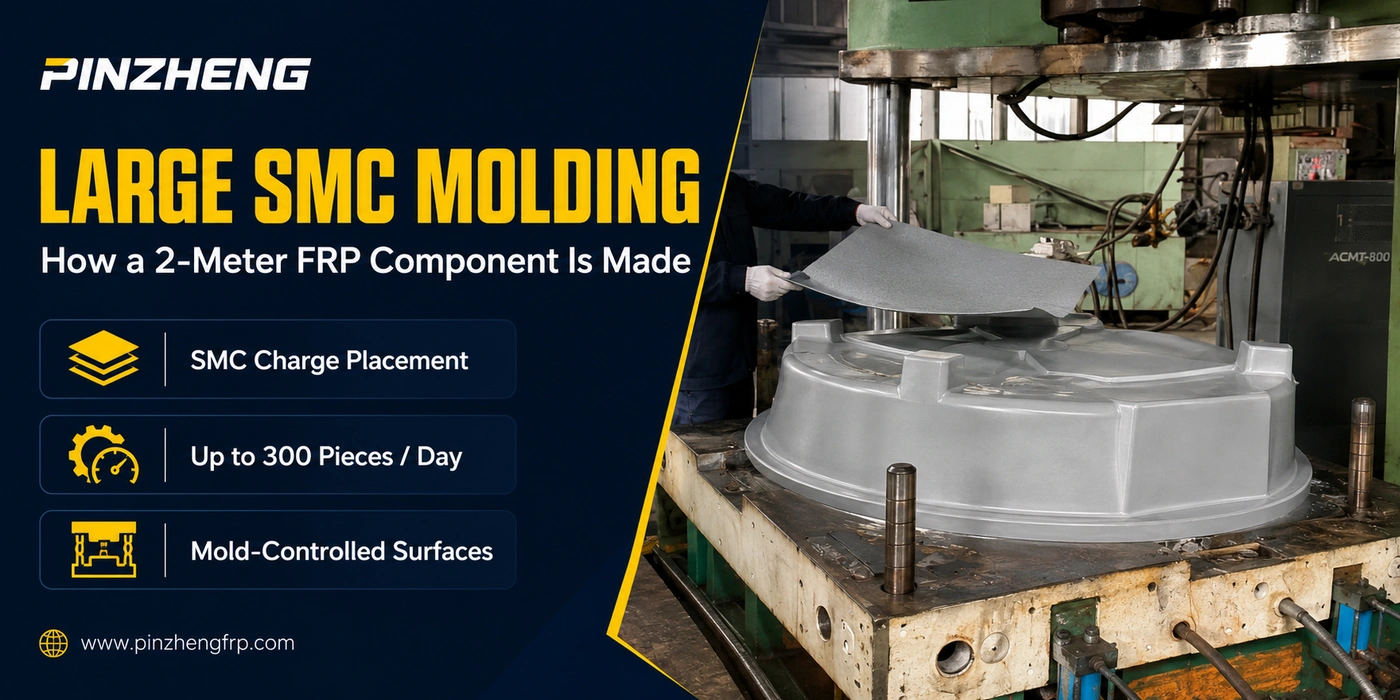

In the workshop video shown with this article, PINZHENG produces a large circular FRP component approximately 2 meters in diameter using SMC compression molding.

The video follows the actual production process from SMC sheet preparation and material placement through heated compression molding, demolding, and surface inspection.

For this specific component, under established production conditions, actual daily production can reach up to 300 pieces.

This production example provides a practical look at how SMC works beyond small molded parts and why material placement, tooling, process control, and product design all influence the final result.

What Is SMC Compression Molding?

SMC stands for Sheet Molding Compound.

It is a ready-to-mold composite material typically consisting of thermoset resin, chopped glass-fiber reinforcement, fillers, and formulation additives.

During compression molding, prepared SMC charges are placed inside a heated matched-metal mold.

The hydraulic press closes the mold and applies controlled heat and pressure, allowing the material to flow through the cavity before curing into the required shape.

For repeat-production FRP components, this process can provide advantages in molded geometry, dimensional consistency, surface control, and production efficiency.

If you are deciding whether compression molding or a manual fiberglass process is more suitable for your project, our guide to hand lay-up versus SMC compression molding explains the main differences between the two manufacturing methods.

A Real 2-Meter SMC Molded FRP Component

The component shown in this video is approximately 2 meters in diameter.

Its size makes it a useful production example because SMC compression molding is sometimes associated mainly with smaller composite parts.

In practice, large FRP components can also be evaluated for compression molding when the product structure, tooling, material flow, and press system are suitable.

Engineers may need to consider factors including:

• projected molding area;

• part depth;

• wall geometry;

• material flow distance;

• mold dimensions;

• press platen size;

• required molding force;

• release direction;

• expected production volume.

A large molded product therefore needs to be evaluated as a complete system:

part design + SMC material + mold + hydraulic press + process parameters.

Step 1: Cutting and Preparing the SMC Charge

The first stage shown in the video is the preparation of the SMC sheet material.

The SMC is cut according to the required charge weight, shape, product geometry, and expected material-flow pattern.

This step may appear simple, but it can have a direct effect on the finished component.

The objective is not always to cover the complete mold cavity before the press closes.

Instead, the material is positioned so that it can flow through the required areas of the cavity during compression.

The charge layout may depend on:

• component geometry;

• wall-thickness distribution;

• ribs and recessed areas;

• flow distance;

• material formulation;

• mold temperature;

• expected pressure distribution.

For large or structurally complex parts, charge placement is therefore part of the molding process design rather than simply a manual loading operation.

Why SMC Charge Placement Matters

Once the mold closes, the SMC material must move through the cavity and fill the required product geometry.

Poor material distribution may contribute to problems such as:

• incomplete filling;

• uneven material flow;

• inconsistent reinforcement distribution;

• localized surface defects;

• poor filling around structural details.

For this reason, experienced operators place the prepared SMC sheets according to the structure of the product instead of simply stacking them randomly in one position.

This becomes especially important with larger molded parts because the material may need to travel farther inside the cavity.

Charge weight, shape, orientation, and position may therefore be adjusted during production trials until a stable molding process is established.

Step 2: Closing the Mold Under Heat and Pressure

After the SMC charge is positioned, the compression mold is closed inside the hydraulic press.

The material is then formed under controlled heat and pressure.

As the upper and lower mold surfaces move together, the SMC flows through the mold cavity and takes the required shape.

The thermoset resin then cures during the molding cycle until the component becomes sufficiently rigid for demolding.

There is no single molding pressure, temperature, or cycle time that can be applied to every SMC component.

Actual process parameters depend on factors including:

• material formulation;

• component thickness;

• projected molding area;

• mold geometry;

• required material flow;

• tooling design;

• part size.

This is why production parameters should be developed according to the actual component rather than copied from an unrelated SMC product.

PINZHENG uses SMC compression molding for a range of repeat-production fiberglass components. More examples can be found through our custom FRP product capabilities.

Step 3: Opening the Mold and Ejecting the Component

Once the molding cycle is complete, the hydraulic press opens and the molded component is released from the tooling.

In the video, the large circular FRP part is removed with the assistance of the press ejection system before being moved for inspection and subsequent processing.

For a large molded component, reliable demolding needs to be considered during product and mold design.

Important factors can include:

• draft angle;

• parting-line position;

• ejector arrangement;

• product stiffness during release;

• ribs and recessed areas;

• handling requirements after demolding.

A component may look suitable for compression molding in a drawing, but if it cannot be released reliably from the tooling, the design may require modification.

This is one reason design-for-manufacturing evaluation is important before compression-molding tooling is produced.

Why Both Surfaces Can Be Mold-Controlled

One of the clearest advantages visible in this production video is the condition of both sides of the finished molded component.

SMC compression molding uses matched upper and lower mold surfaces.

This means that both sides of the component can be formed by tooling.

That differs from conventional open-mold hand lay-up, where the mold side normally has the more controlled surface while the open side is formed and consolidated manually.

For products where both internal and external surfaces are visible, or where consistent geometry on both sides is important, matched-mold compression can provide a significant manufacturing advantage.

However, SMC should not be interpreted as an automatic guarantee of a specific cosmetic grade.

Actual surface quality may also depend on:

• mold-surface condition;

• tooling accuracy;

• material formulation;

• charge placement;

• molding temperature;

• pressure;

• material flow;

• post-molding finishing requirements.

Surface specifications should therefore be defined according to the actual product and application.

Actual Production: Up to 300 Pieces per Day

Production efficiency is one of the main reasons manufacturers consider SMC for repeat-volume fiberglass components.

For the approximately 2-meter FRP component shown in this video, PINZHENG's actual production experience shows that daily output can reach up to 300 pieces under established production conditions.

This is real production data for this specific component.

It should not be interpreted as a universal production rate for every SMC molded product.

Actual daily output can vary according to:

• component dimensions;

• molding cycle;

• mold design;

• number of available molds;

• hydraulic press availability;

• charge-preparation efficiency;

• demolding requirements;

• material handling;

• production organization.

Nevertheless, this example demonstrates why compression molding can become particularly attractive when the same FRP component needs to be produced repeatedly in larger quantities.

Why SMC Can Improve Repeat-Production Efficiency

Traditional hand lay-up manufacturing requires fiberglass reinforcement and resin to be manually placed, impregnated, consolidated, and finished.

This flexibility makes hand lay-up valuable for oversized parts, customized products, low-volume orders, and complex shapes.

SMC uses a different manufacturing approach.

Once the prepared charge is placed into the mold, much of the forming and curing operation takes place inside the closed tooling.

For standardized components produced repeatedly from the same mold, this can reduce dependence on manual laminate shaping and improve production repeatability.

SMC is therefore often considered when buyers require:

• repeated production of the same geometry;

• more consistent dimensions;

• controlled molded surfaces;

• integrated ribs or structural details;

• repeatable tooling-defined geometry;

• reduced manual forming;

• scalable batch manufacturing.

The manufacturing process should still be selected according to the complete project rather than production speed alone.

For a detailed comparison of the two processes, see our article on hand lay-up versus SMC molding.

Large SMC Parts Require More Than a Large Hydraulic Press

A common misunderstanding is that producing a large SMC component only requires a sufficiently large hydraulic press.

Press size and capacity are important, but they are only part of the manufacturing system.

Large molded FRP components may also require careful evaluation of:

Material Flow

The SMC needs to reach the required areas of the cavity without creating unacceptable filling problems.

Mold Structure

Large compression molds need sufficient structural stability under molding conditions.

Charge Distribution

Material placement becomes increasingly important as the flow distance increases.

Demolding

The finished component needs a practical release and handling strategy.

Product Geometry

Ribs, walls, corners, bosses, transitions, and depth can all affect moldability.

For this reason, large FRP components should normally be reviewed using drawings, 3D models, samples, or detailed product dimensions before tooling decisions are made.

SMC Is Not Automatically Better Than Hand Lay-Up

The production video demonstrates several strengths of SMC compression molding, but this does not mean that every FRP component should be converted to SMC.

Hand lay-up remains useful for:

• very large components;

• low production quantities;

• one-off products;

• highly customized shapes;

• products requiring frequent design changes;

• projects where compression tooling cannot be economically justified.

SMC generally becomes more attractive when the product has a repeatable design and the expected production volume can justify the tooling investment.

The decision should therefore consider:

• product geometry;

• expected quantity;

• tooling investment;

• surface requirements;

• dimensional consistency;

• production efficiency;

• expected repeat orders.

PINZHENG provides SMC compression molding, RTM, and hand lay-up FRP manufacturing, allowing the process to be evaluated according to the actual component rather than forcing every project into one production method.

What Information Helps Evaluate a Custom SMC Part?

If you are considering SMC compression molding for a new fiberglass component, useful project information includes:

• 2D drawings;

• 3D models;

• overall dimensions;

• wall thickness;

• expected production quantity;

• surface requirements;

• dimensional tolerances;

• structural ribs or bosses;

• insert requirements;

• operating environment;

• expected repeat orders.

This information helps determine whether compression molding is technically and commercially suitable.

Where SMC is appropriate, development may include:

• product-design review;

• mold development;

• charge-layout trials;

• sample molding;

• dimensional inspection;

• surface inspection;

• process adjustment;

• repeat-production verification.

Conclusion

This approximately 2-meter FRP component provides a practical example of how SMC compression molding can be used for large repeat-production fiberglass parts.

The process begins with carefully prepared and positioned SMC sheets, followed by forming and curing inside a heated compression mold.

After the molding cycle, the tooling opens and the finished component is released for inspection and subsequent production operations.

For this specific component, PINZHENG's established production process can achieve daily output of up to 300 pieces.

The most important lesson, however, is that successful SMC production depends on the complete manufacturing system:

material + charge placement + product design + mold + molding parameters + hydraulic press + production organization.

For repeat-production fiberglass components, SMC can provide valuable advantages in mold-controlled surfaces, dimensional repeatability, integrated molded structures, and manufacturing efficiency.

But process selection should always begin with the actual product requirements.

If you are evaluating whether an existing fiberglass component or a new design is suitable for SMC production, explore our custom FRP manufacturing capabilities or contact PINZHENG with your drawings, dimensions, expected quantities, and surface requirements.

FAQ

Can large FRP parts be made by SMC compression molding?

Yes. Some large FRP components can be produced by SMC compression molding when the product geometry, projected molding area, material flow, mold size, press capacity, and demolding requirements are suitable. Each component should be evaluated individually.

Why is SMC charge placement important?

The initial position, shape, weight, and distribution of the SMC sheets influence how the material flows through the mold cavity. Proper charge placement can help improve cavity filling and production consistency.

Can SMC compression molding control both sides of the part?

Because SMC compression molding uses matched upper and lower tooling, both sides of the component can be shaped by mold surfaces. Actual surface quality still depends on tooling condition, material formulation, charge placement, and molding parameters.

How many SMC parts can PINZHENG produce per day?

Production capacity depends on the specific product. For the approximately 2-meter FRP component shown in this article, PINZHENG's established production process can reach up to 300 pieces per day. This figure applies to this specific component and should not be treated as a universal production rate for all SMC products.

Is SMC always better than hand lay-up?

No. SMC is particularly useful for repeat-production components where tooling investment can be justified. Hand lay-up remains valuable for large, customized, low-volume, and frequently changing FRP products.

What information is needed to evaluate a custom SMC component?

Useful information includes drawings or 3D models, dimensions, wall thickness, expected quantity, surface requirements, tolerances, structural features, insert requirements, and operating conditions.
